GRGDR
Main features
- Working pressure (2÷6 bar / 6÷12 bar / 12÷20 bar)
- Flow rate (1500/2500 sm³/h)
- N° of columns (2 columns (1 in operation and 1 undergoing regeneration with automatic changeover))
- Quantity of absorbent material (150 kg per column)
- Gas filtration degree (Inlet filter 40 μ / Outlet filter 3 μ)
- Regeneration type (Fully automatic with closed regeneration cycle)
- Power supply (400 V 50 Hz)
- Power consumption (18 to 28 kW depending on the model)
- Duration of the regeneration cycle (7 to 9 hours)
- Installation ambient temperature (-10 to 50°C)
Product information

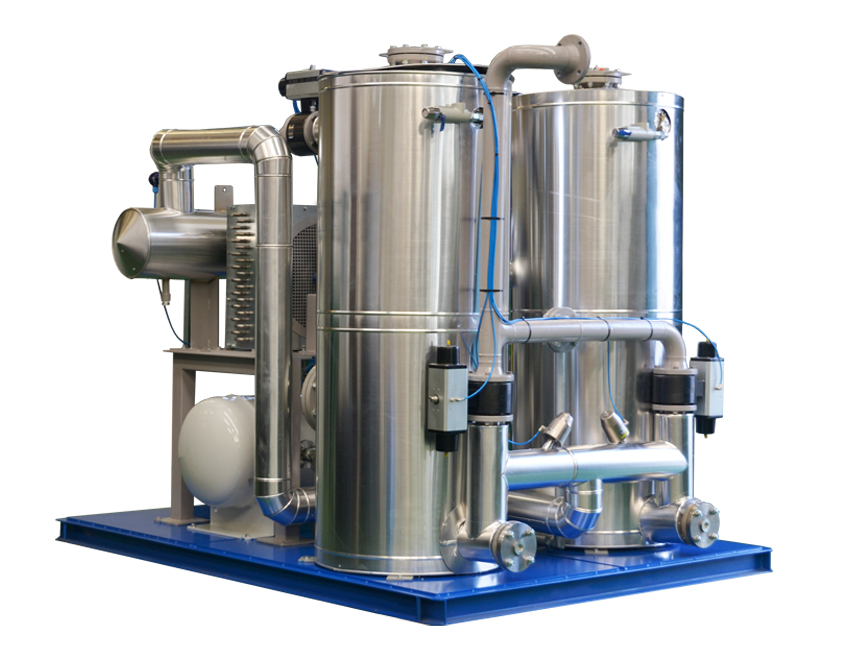

The GRGDR series regenerative dryers from GRAF S.p.A. consist of two columns filled with molecular sieves and are equipped with an automatic closed-circuit regeneration system, thus preventing any gas release into the atmosphere.
Fully automatic, they are able to change state without operator intervention. The material used for absorption is of the highest quality and is capable of achieving a dew point level of up to -80 °C.
